Please note: The product image may depict a similar model from the same series.
6048.0111
Food, Beverage and Dairy
Availability:Available to Buy

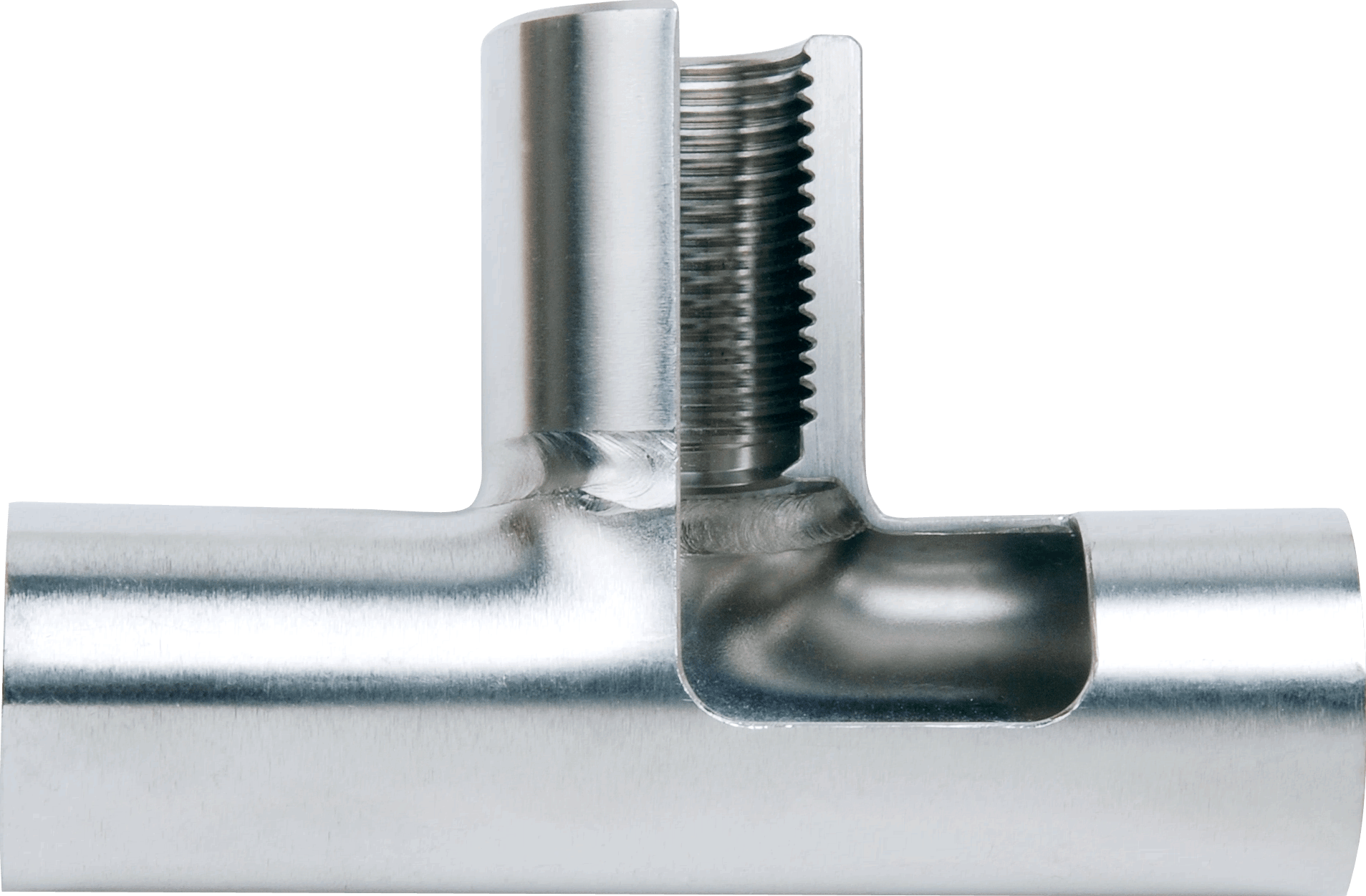

The CLEANadapt Process Connection System is a hygienic screw connection that has been specially developed for food applications. It offers flow-optimised pipe Tees, weld-in sleeves, or adapters for existing process connections. These connectors are easily integrated into tanks or pipes and the sensors are simply screwed in.
For an overview on all advantages and benefits of our process connections we recommend our brochure “Hygienic installation systems for Food Applications”.
Hygienic sealing technology without dead legs – maintenance-free and hygienic adaptation without elastomers, seals or Teflon tape
Three thread sizes (M12, G½” and G1″), universal application – sensors for temperature, point level, continuous level, flow, pressure, conductivity and turbidity can be integrated easily
Simple, flexible installation – Weld-in sleeves (EMZ, EMK, EMS, KEM) for tanks and pipes / Pipe Tees (EHG, for orbital welding) for pipes from DN15 to DN100. Process adapters (AM…) for existing process connections
